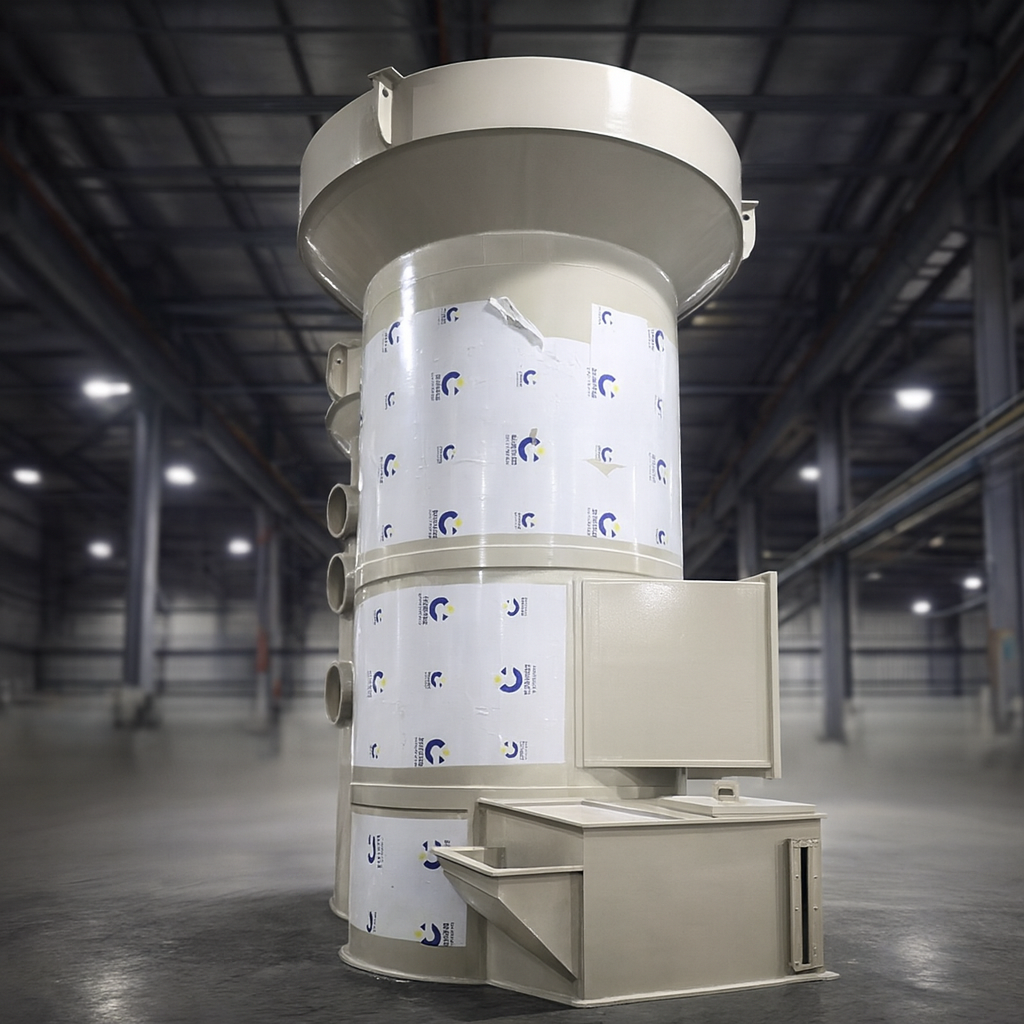

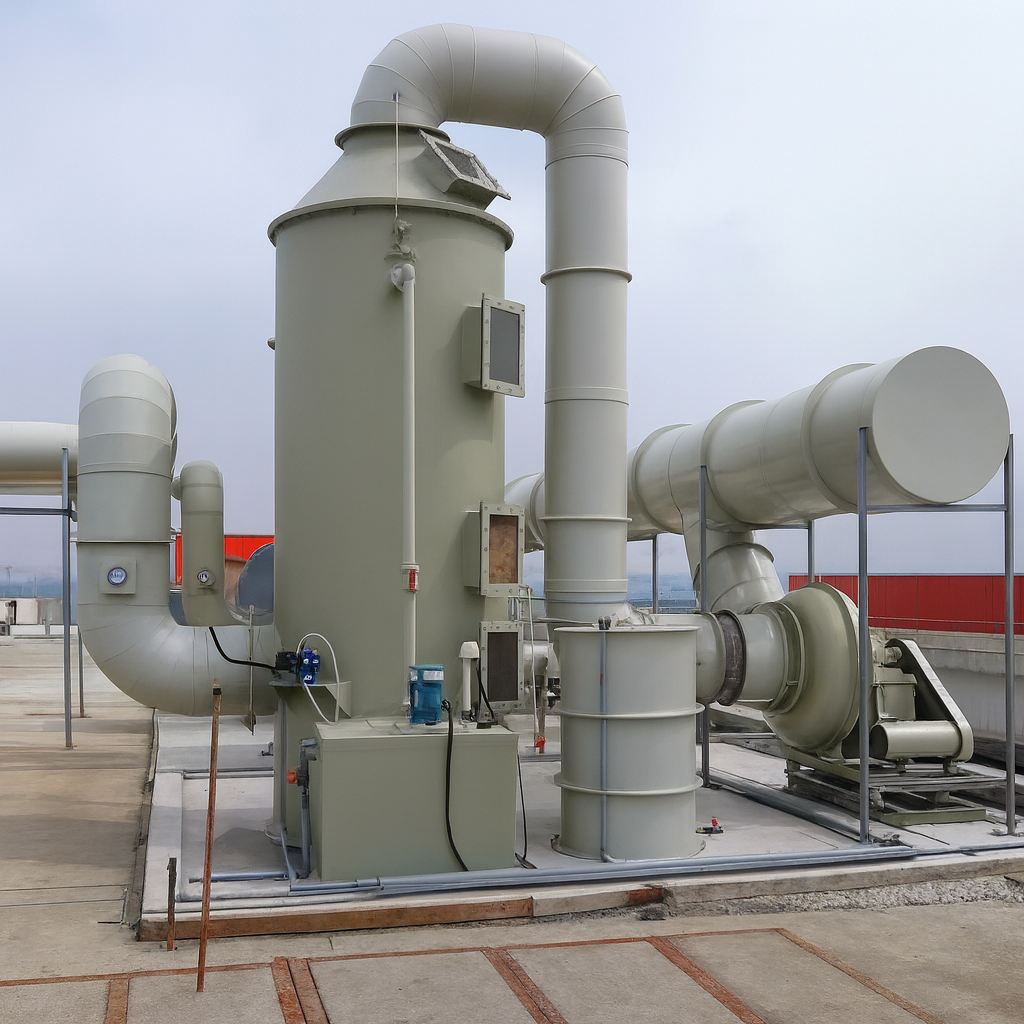

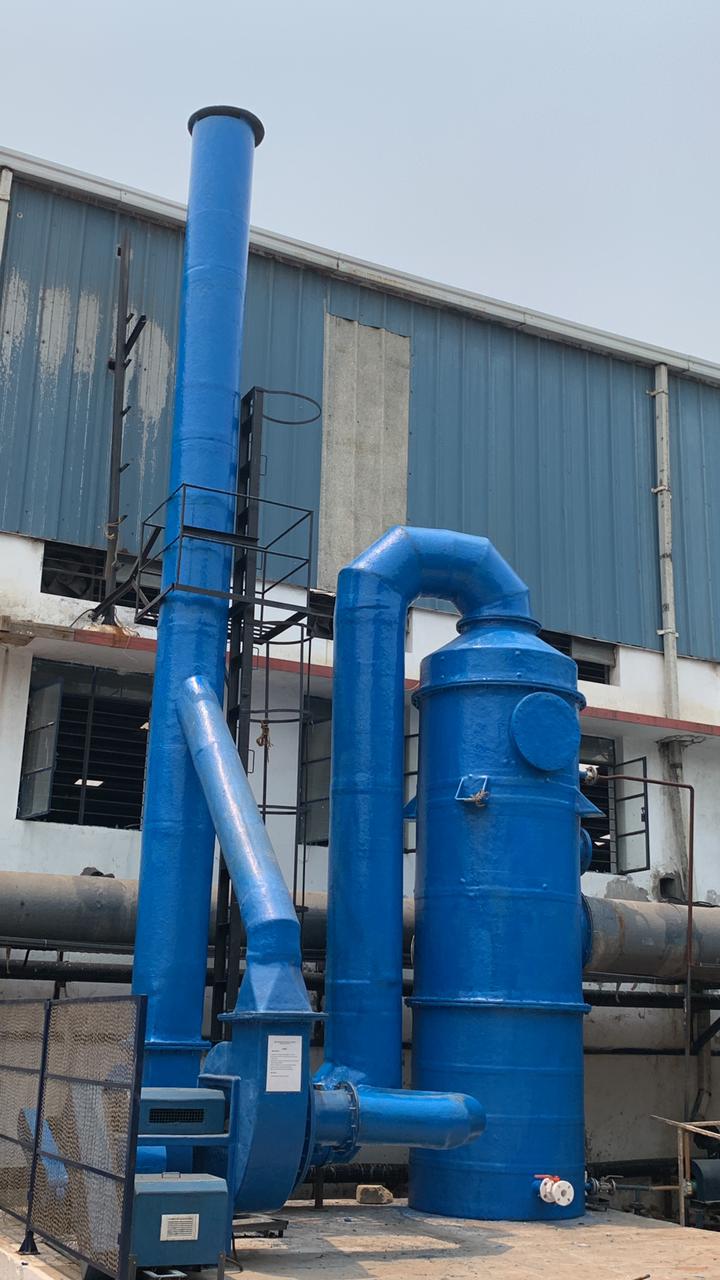

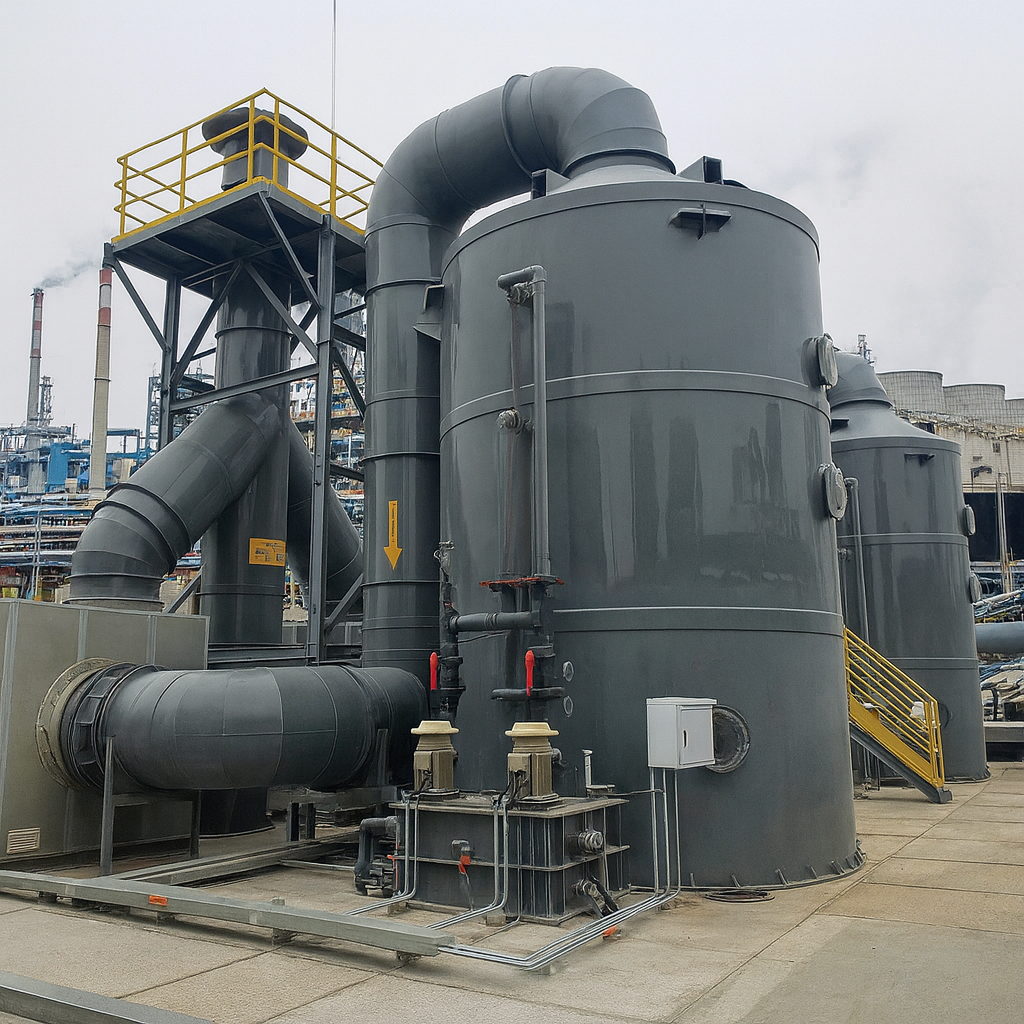

Acid Fume Scrubber System
Acid Fume Scrubber Systems are advanced air pollution control solutions designed to safely capture and neutralize corrosive acid fumes and vapors generated in industrial processes such as pickling, plating, anodizing, and chemical manufacturing. These systems protect workers, equipment, and the environment by effectively removing harmful gases like hydrochloric acid, sulfuric acid, and other acidic emissions from the air.
Categories
Key Features
- Engineered to efficiently remove harmful acidic fumes, vapors and gases from industrial processes.
- Constructed using corrosion-resistant materials such as PP, HDPE, FRP or PP+FRP.
- High scrubbing efficiency with multi-stage design for effective pollutant removal.
- Equipped with packed bed media for maximum surface contact and enhanced absorption.
- Low-pressure drop design ensures energy-efficient operation.
- Available with mist eliminators, demisters and high-performance exhaust blowers.
- Modular, compact and customizable system suitable for a wide range of industries.
- Low maintenance with long operational life and excellent chemical compatibility.
- Compatible with ventilation ducts, fume hoods and various chemical exhaust systems.
Specifications
- Construction Materials: PP, HDPE, FRP or PP+FRP selected based on chemical type and application.
- Scrubbing Type: Packed bed, venturi scrubber or multi-stage scrubber.
- Airflow Capacity: Customizable from small laboratory setups to large industrial plants.
- Media Type: PP saddles, PP rings, structured packing or customized scrubbing media.
- Blower: Chemical-resistant centrifugal blower fabricated in FRP or PP material.
- Efficiency: Up to 95–99% removal efficiency depending on design and pollutant load.
- Pump: Acid-resistant pump for continuous recirculation of scrubbing liquid.
- Tank: Integrated chemical tank with inlet, outlet, drain, overflow and level indicators.
- Ducting Compatibility: Supports PP, HDPE, FRP and PP+FRP ducting systems.
Applications & Uses
Hazardous Acid Fume Neutralization
Used for neutralizing and removing hazardous acid fumes generated in chemical processing plants.
Metal Finishing & Surface Treatment
Suitable for electroplating, anodizing, pickling, and metal finishing operations requiring controlled exhaust treatment.
Pharmaceutical & Biotech Facilities
Essential for pharmaceutical and biotech units to ensure safe and controlled removal of corrosive fumes.
Agro-Chemical & Fertilizer Plants
Applied in fertilizer, pesticide, and agro-chemical manufacturing units for safe exhaust management.
Laboratories & R&D Centers
Used in laboratories, R&D facilities, and testing centers for safe extraction of acidic fumes and vapors.
Battery & Acid Processing Units
Ideal for battery manufacturing, acid regeneration units, and chemical mixing processes generating harmful fumes.
Effluent Treatment Plants
Commonly used in wastewater treatment plants (ETP/STP) where acidic gases and fumes need safe removal.
Textile, Dye & Pigment Industries
Suitable for textile, dye, pigment, and chemical processing industries for controlling corrosive exhaust gases.
